Mechatronic Systems Stand & Mechatronics 2.2

In order for any medical breakthrough, researchers need the perfect environment and ground-breaking technology. The Mechatronic System is developed to provide exactly that. Designed with functionality in mind, the system and it’s anthropomorphic limb allow researchers to perform numerous tasks safely and remotely but with accuracy and precision.

mechatronics thumb-01.png

The Mechatronic Systems Stand – More than just a workspace

The basic unit of the Mechatronic System is the laboratory stand, a high-tech base to carry out research in comfort. With the Mechatronic Systems Stand we can use Mechatronics 2.2 - the most sophisticated anthropomorphic tool available today.

By providing a workspace that combines the most advanced technology with comfort and practicality, The Mechatronic Stand is a necessity for every research and development laboratory using the Mechatronic 2.2 system. The stand is compromised of several components that are needed to operate the anthropomorphic units:

The basic unit of the Mechatronic System is the laboratory stand, a high-tech base to carry out research in comfort. With the Mechatronic Systems Stand we can use Mechatronics 2.2 - the most sophisticated anthropomorphic tool available today.

By providing a workspace that combines the most advanced technology with comfort and practicality, The Mechatronic Stand is a necessity for every research and development laboratory using the Mechatronic 2.2 system. The stand is compromised of several components that are needed to operate the anthropomorphic units:

  • Stand table

  • Server rack

  • A block of protective equipment

  • Server PC

  • Network equipment

  • Cooling system

  • Uninterruptable power supply

  • Screen, keyboard & mouse

Anthropomorphic technology at your fingertips

A true feat of robotic engineering, the Mechatronics 2.2 is able to carry out numerous intricate tasks with detail and precision. Mounted on an adjustable frame and with 12 degrees of mobility, the manipulator is controlled with VisualStudio software using ready-made libraries. The user-friendly software allows researchers and operators to develop programs for carrying out tasks that require dexterity and accuracy. The Mechatronic 2.2 is capable of performing these activities thanks to:

  • High-performance fine motor skills

  • Fixation and movement of objects weighing up to 2kg

  • Force-controlled capture and retention of objects

  • Motion-controlled algorithms

  • Hi-res video camera

  • High-performance fine motor skills

  • Fixation and movement of objects weighing up to 2kg

  • Force-controlled capture and retention of objects

  • Motion-controlled algorithms

  • Hi-res video camera

The possibilities for uses of the anthropomorphic manipulator are endless, whether it be playing chess or handling delicate substances, the unbeatable accuracy of the Mechatronics 2.2 makes any activity a reality.

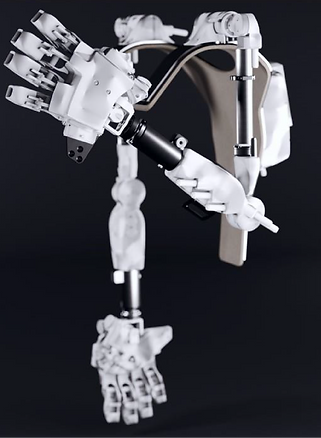

=Mechatronics 2.2-05.png

The Mechatronic Systems Stand is your base for carrying out tasks with the Mechatronics 2.2 anthropomorphic manipulator. This will be where users are able to perform an array of activities required to operate the manipulator, including:

  • Research of kinematics and dynamics of multi-link anthropomorphic systems with the possibility of autonomous remote control.

  • Setting debugging of regulators and algorithms for adjusting the accuracy of electric drive positioning of anthropomorphic manipulators and grippers.

  • Parameter identification of models of electric drive systems, anthropomorphic manipulators and grippers.

  • Checking the adequacy of models of electric drive systems, anthropomorphic manipulators and grippers.

  • Study of the system of combined control of an anthropomorphic manipulator and a gripper.

=Mechatronics 2.2-02.png
=Mechatronics 2.2-03.png

The Mechatronics 3D Laboratory Complex

The 3D Laboratory Complex contains a 3D model of the Mechatronics 2.2 manipulator limb with five structural links and specialized computer software used for managing the actions of the 3D manipulator. Users can create their own algorithms to conduct activities and create scenarios for the andromorphic limb to perform.  The capabilities of this technology provide:

  • Modelling and research of manipulator kinematics.

  • Simulation of the movement of the components of the manipulator.

  • Testing of manipulator motion control algorithms.

  • Simulation of the positioning of the capture of the manipulator.

  • Simulation of adjustment of regulators and algorithms of force regulation in manipulator electric drives.

  • Application of ready-made control algorithms on a real model of a manipulator.

  • Fixation and movement of objects weighing up to 2 kg.

Without a doubt the most complete laboratory unit, the combined engineering of the Mechatronics Systems Stand, the Mechatronics 2.2 manipulator and the 3D Laboratory Complex brings endless possibilities to your research.
